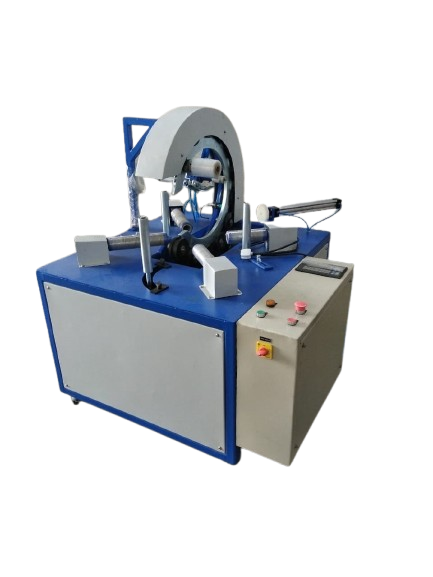

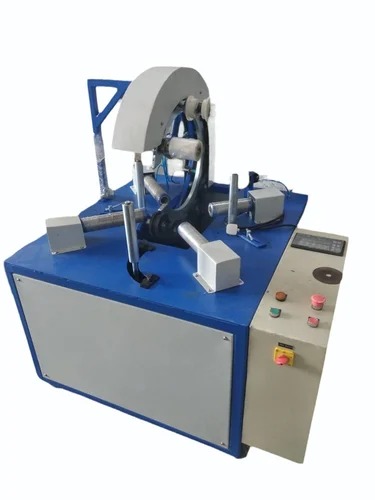

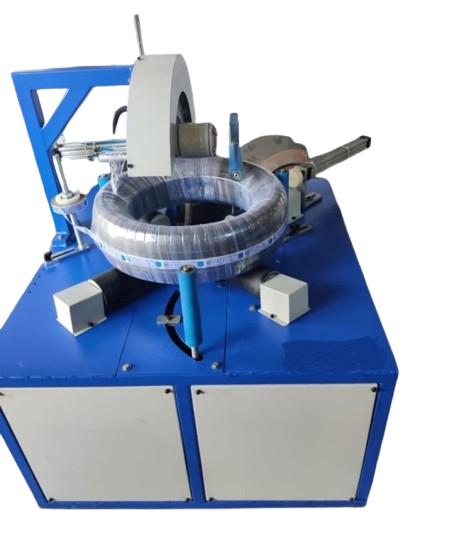

- Kopack Coil Wrapping Machine is a specialized packaging solution designed to wrap coils of metal, wire, cable, or similar materials using stretch film, woven fabric, or other protective materials. These machines are widely used in industries like steel, aluminum, wire, and cable manufacturing to ensure product protection and easy handling.
Applications
- Steel and Aluminum Industries:
Wrapping coils of steel, aluminum, and other metals.
- Wire and Cable Manufacturing:
Packaging large spools or reels of wires and cables.
- Rubber and Plastic Coils:
Protecting coiled materials like rubber hoses or plastic tubing.
Wrapping coiled fabrics or similar products.
- Coil Inner Diameter : 200-300 MM
- Coil Outer Diameter :300-500 MM
- Product Weight : Upto 25
- Coil Width/Height : Upto 200 MM
- Power Supply : 1 phase, 280 v, 50/60 HZ
- Power Consumption : 2 KW
- Ring/Roller Motor : 5-1 HP
- Roller motor : 5- 1 HP.
- Coil Output :2 coils/ mnt. (Can vary depending on coil size)
- PLC :Delta or equivalent
- Drive :VFD Delta or equivalent
- Machine Dimensions :L 1500 x W 1400 x H 1500 MM
- Body :M S Structure, Powder Coated
- Wrapping core id/od :75 MM/110 MM
- Wrapping core width :75 MM
