A Hot Bar Hand Machine (or hot bar sealer) is a type of heat-sealing machine designed to create a strong, consistent seal for various packaging materials. Unlike impulse sealers that heat up momentarily, hot bar sealers maintain a constant temperature during operation. Here's an overview:
What is a Hot Bar Hand Machine?
A hot bar hand machine uses a heated bar (or plate) to seal materials, often used for packaging that requires a strong, durable seal. This type of machine is ideal for sealing thicker materials or special packaging such as:
- Aluminum foil bags
- Multi-layer plastic films
- Laminated pouches
- Coated materials
- Constant Heat Sealing:
- The heating bar maintains a consistent temperature, ensuring uniform seals across all materials.
- Adjustable temperature settings to accommodate different materials.
- Manual Operation:
- The operator manually aligns the material under the hot bar and activates the sealing process, usually with a lever or button.
- Versatile Material Compatibility:
- Suitable for sealing thicker or heat-resistant materials.
- Often used for industrial and food-grade packaging.
- Durable Construction:
- Built with high-quality metals for the heated bar to ensure even heat distribution.
- Often includes a heat-resistant handle for safe manual operation.
- Customizable Seal Width:
- Seal widths can vary based on the machine, usually ranging from 2 mm to 10 mm or more
|
Model
|
Seal (mm)
|
Power
|
Dimension (mm)
|
Weight
|
|
Length
|
Width
|
V
|
W
|
L
|
B
|
H
|
(Kg)
|
|
Impulse Sealers
|
|
190 HW
|
190
|
3
|
240
|
290
|
320
|
85
|
230
|
3
|
|
200 HB
|
200
|
1.6
|
240
|
200
|
320
|
85
|
230
|
3.0
|
|
200 D V2
|
200
|
1.6
|
240
|
170
|
320
|
85
|
230
|
2.25
|
|
250 Delta
|
250
|
1.6
|
240
|
270
|
350
|
85
|
250
|
3.6
|
|
300 Delta
|
300
|
1.6
|
240
|
300
|
420
|
85
|
230
|
4.3
|
|
300 HB
|
300
|
1.6
|
240
|
300
|
410
|
85
|
250
|
4.5
|
|
300 HW
|
300
|
3
|
240
|
380
|
420
|
85
|
270
|
4.6
|
|
400 HB
|
400
|
1.6
|
240
|
380
|
520
|
85
|
270
|
5.4
|
|
500 HB
|
500
|
1.6
|
240
|
440
|
630
|
85
|
300
|
7.3
|
|
400 D
|
400
|
1.6
|
240
|
340
|
520
|
85
|
270
|
5.2
|
|
Hotbar Sealers
|
|

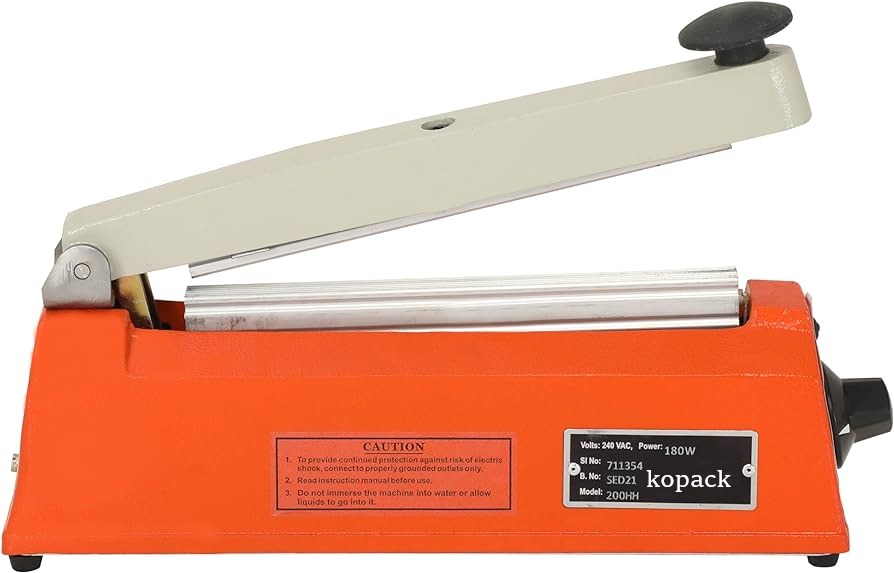

200 HH
|
200
|
12
|
240
|
120
|
340
|
85
|
190
|
2.6
|
|
300 HH
|
300
|
12
|
240
|
200
|
410
|
85
|
250
|
3.0
|
